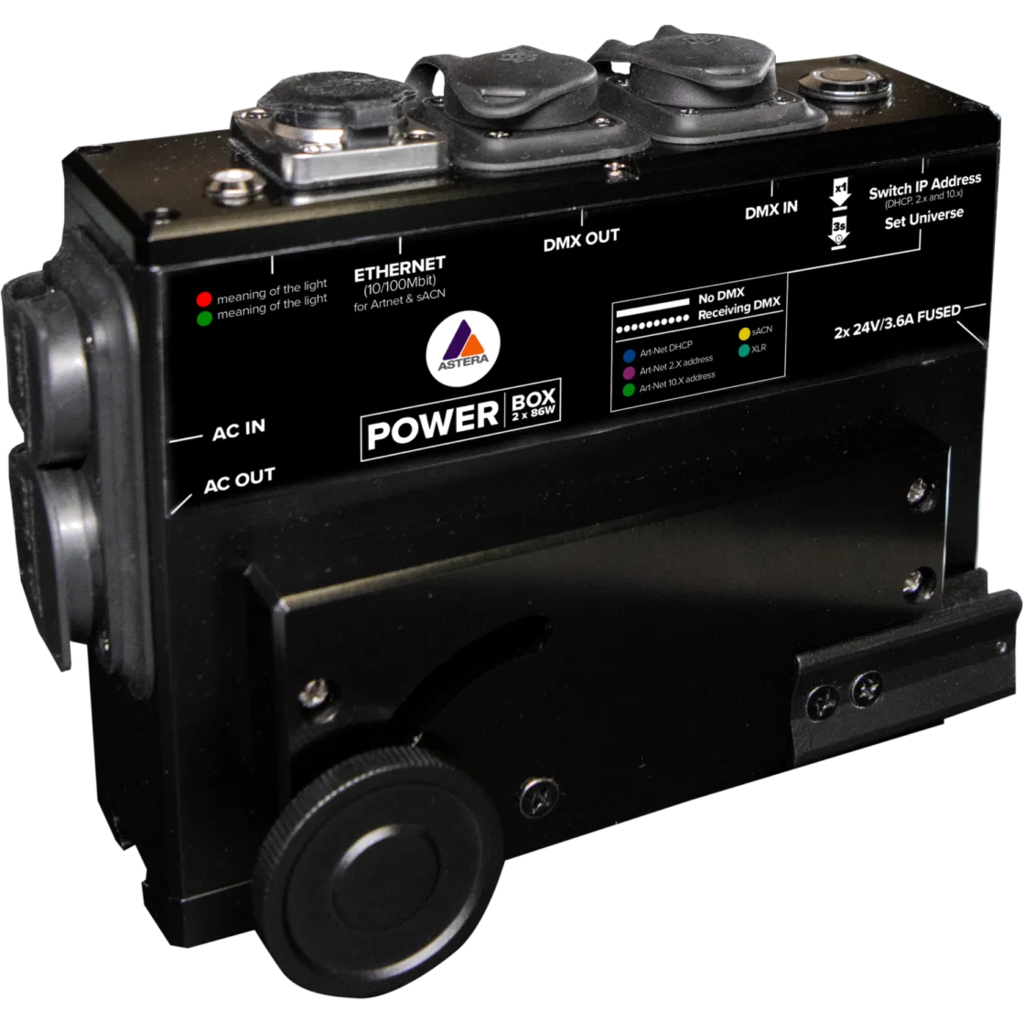

The PowerBox can charge Helios and Titan Tubes inside their respective case. When taken out of the case they can also be used to hard-wire tubes for a longer usage. In addition, the PowerBox can add DMX, Artnet and sACN data to your tubes. Power and Data can both run over special cables so only 1 cable is needed to connect a tube to the PowerBox.
Electrical
- Input Voltage: 90~250 VAC
- Current: 4.4A@115VAC, 3A@230VAC
- Output Voltage: 10 x 24VDC
- Output Current: 10 x 2A
- Power in: Via Powercon True1
- Power out: Via Powercon True1
Construction
- Housing: Aluminium
- IP Rating: IP20
- Operating Temperature: 0-40 °C | 32-104 °F
- Weight: 3.8kg | 8.37lbs
- Dimensions: 321 x 125 x 90.7mm | 12.63 x 4.92 x 3.57 inches
- Environment: Indoor
Data
– Art-Net (1 Universe)
– sACN (1 Universe)
- IP Address can be selected between 2.x, 10.x and DHCP.
- Universe ID can be set by web-interface or pushbutton (by button only 1-16).
- Output Data: DMX via DC sockets
- Wireless Data: n/a
- Data Sockets: 5-pin XLR in+out, RJ45 input
